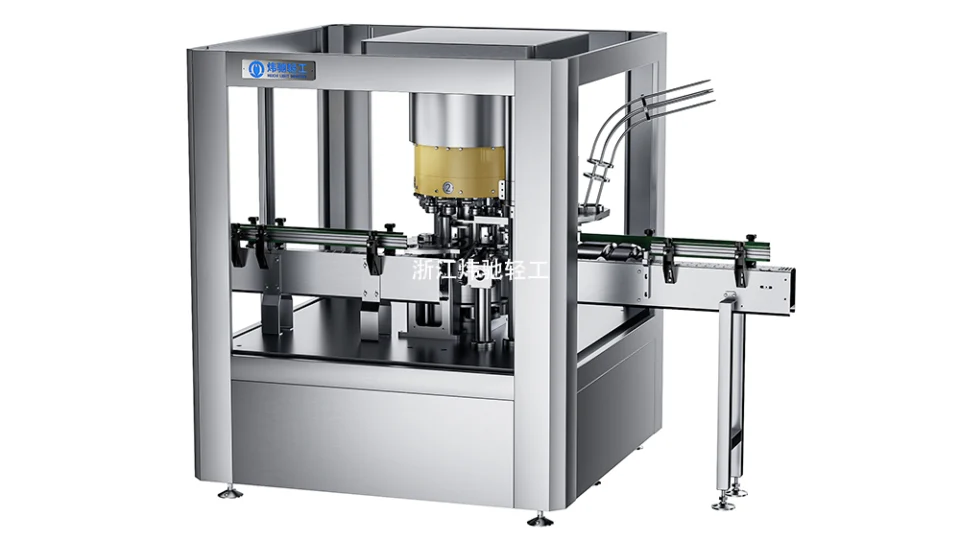

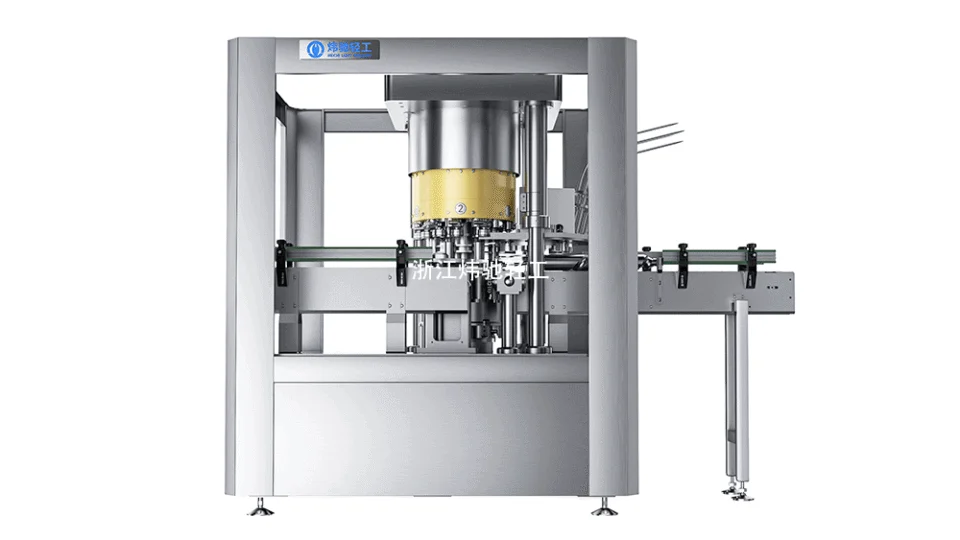

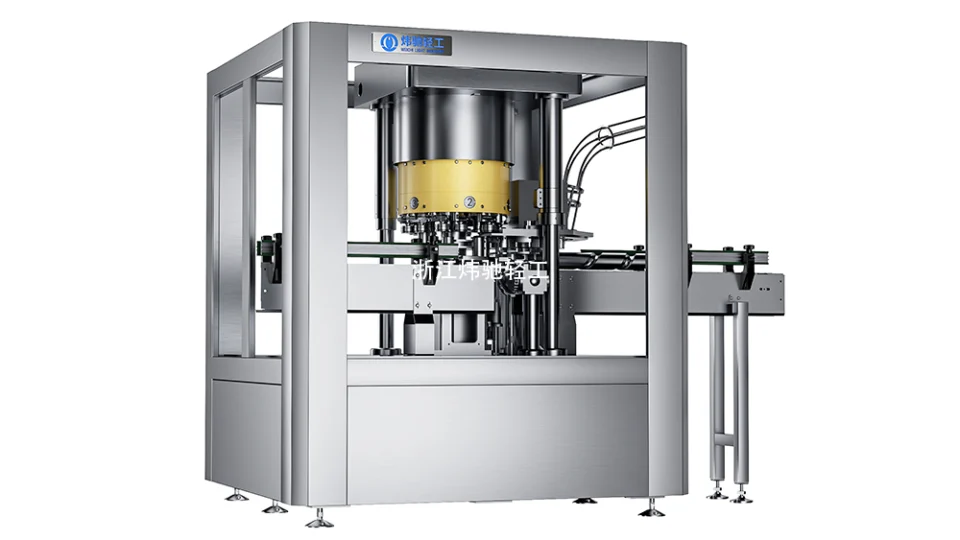

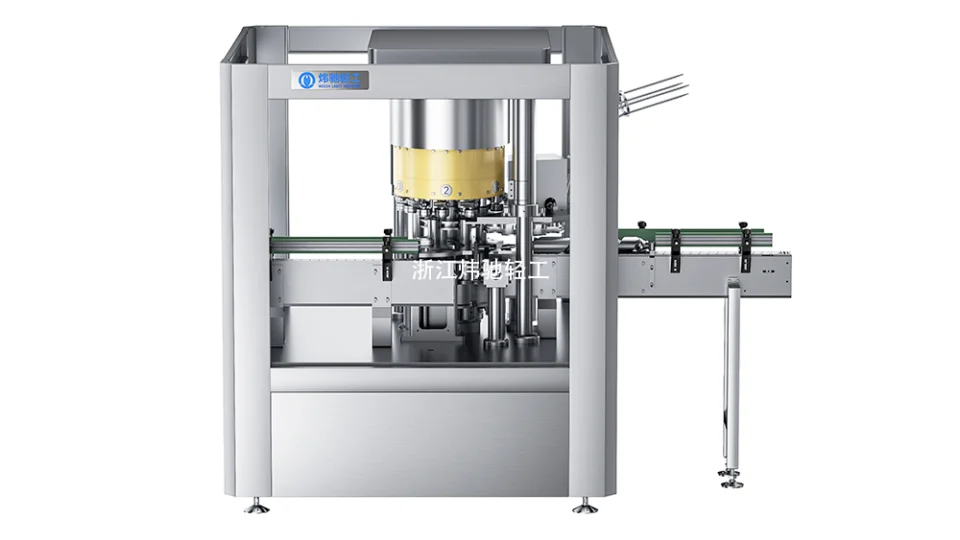

This machine is designed for seaming a wide variety of beverages and canned goods packaged in pull-tab tinplate cans, including juice drinks, tea beverages, carbonated drinks, protein drinks, and various canned foods. It is available in configurations with 1, 4, 6, or 8 seaming heads, offering a production speed range of 30 to 800 cans per minute.
Contact UsStandard Taiwan-Made Titanium-Coated Seaming Rolls
Standard configuration includes Taiwan-made titanium-coated seaming rolls; corrosion-resistant, with a typical service life of ~5 million cans per roll.
Precision Dual-Axis Seaming System
Dual-axis structure enables independent adjustment of 1st and 2nd operation rollers, ensuring precise, stable, and consistent seam quality.
Heavy-Duty Central Spindle Assembly
Central spindle equipped with heavy-duty bearings; critical load points use high-quality imported bearings for long service life and reliable high-speed operation.
Precision-Ground Gear Transmission
Seaming head and key drive components use precision-ground gears for enhanced durability, reduced noise, and smooth operation.
Industrial-Grade Electrical Components
Siemens PLC with touchscreen HMI, Delta inverter, Airtac solenoid valves, and Omron sensors ensure stable control and long-term reliability.
User-Friendly Control & Safety System
Fully adjustable speed via touchscreen; integrated PLC alarm and fault indication for safe and efficient operation.
Clean & Sanitary Design
Hygienic machine layout with smooth surfaces, suitable for beverage applications.
Foam & Chemical Cleaning Compatible
Designed to support foam and chemical cleaning processes.
Steam Injection for Seaming Process
Integrated steam injection system at the seaming station to improve air displacement, reduce dissolved oxygen, and enhance product shelf life.
Transparent Safety Guarding
Full safety enclosure with organic glass (plexiglass) panels for visibility and operator protection.
Liquid Nitrogen Dosing Ready
Compatible with liquid nitrogen dosing systems (supplied by third-party vendors).
Basic Tool Kit Included
Standard maintenance and adjustment tools provided with the machine.
1-Year Warranty
One-year warranty covering main machine components.
| Model | FB4B | FB6B | FB8 | DFB03 | DFB04 |
|---|---|---|---|---|---|
| Seaming Stations | 4 | 6 | 8 | 3 | 4 |
| Cans Per Hour | 15000 | 24000 | 36000 | 5400 | 7200 |
| Cans Per Minute | 250 | 400 | 600 | 90 | 120 |
| Can Diameter | Φ52.5-99mm | Φ52.5-84mm | Φ52.5-73mm | Φ153mm | Φ153mm |
| Can Height | 92 - 133mm | 92 - 133mm | 92 - 133mm | 100-260mm | 100-260mm |
| Power | 5.5kW | 5.5kW | 11.0kW | 4.0kW | 4.0kW |
| Weight | 1500kg | 2300kg | 3100kg | 2500kg | 2500kg |
| Dimension | 2200×1400×1900mm | 2400×1200×2200mm | 1975×1625×1800mm | 2440×1500×2100mm | 2440×1500×2100mm |
1. Steam Jet System for Seamer:
An optional steam injection system can be integrated into the can seamer to enhance the vacuum level inside the can, thereby extending product shelf life.
2. Stainless Steel Construction:
Optional construction includes a SUS304 stainless steel frame and seamer head.
3. Motorized Can Height Adjustment:
A motorized mechanism allows for convenient and precise adjustment of can height, ensuring compatibility with various container sizes and improving production flexibility.
