FBN6 stationary-can automatic seaming machine on a white background

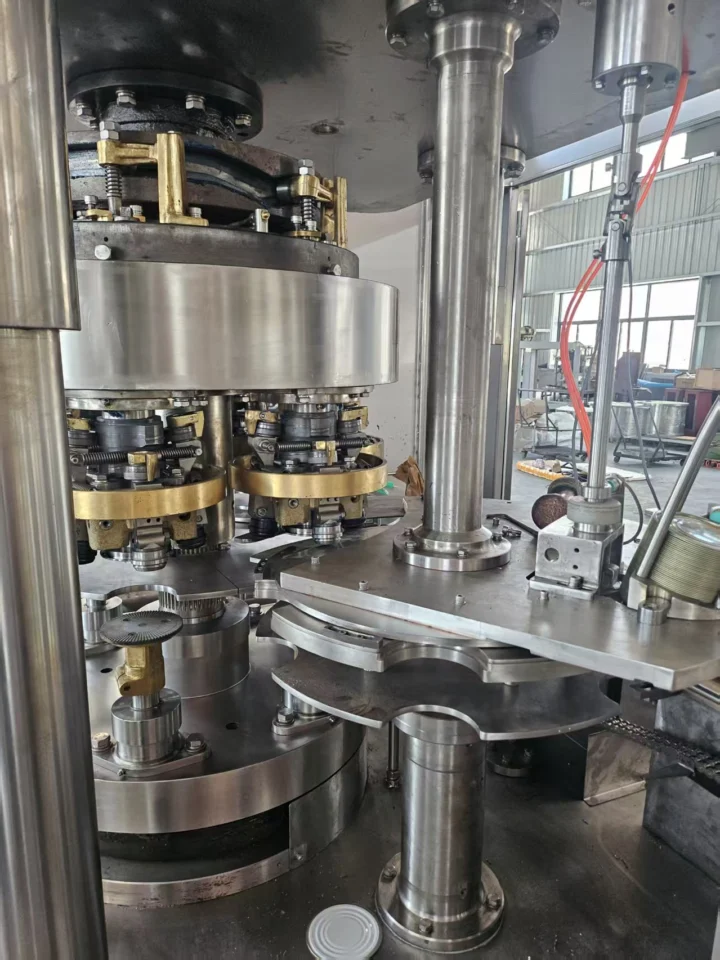

FBN6 stationary-can seaming heads and can-lifting mechanism
FBN6 four-roller double-seaming mechanism close-up

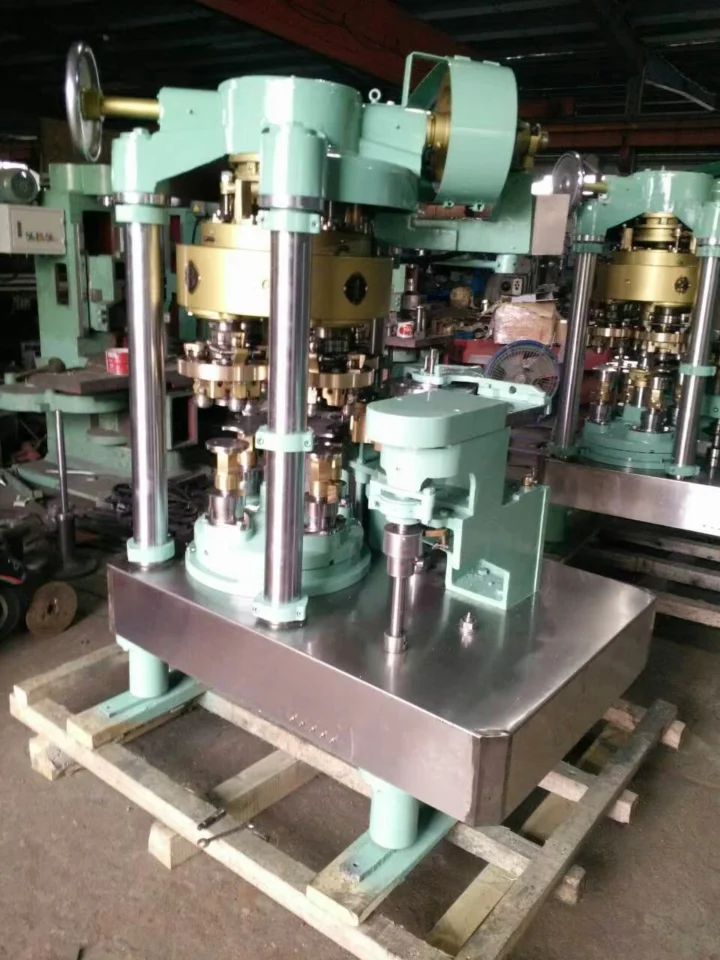

FBN4 four-head stationary-can seaming machine

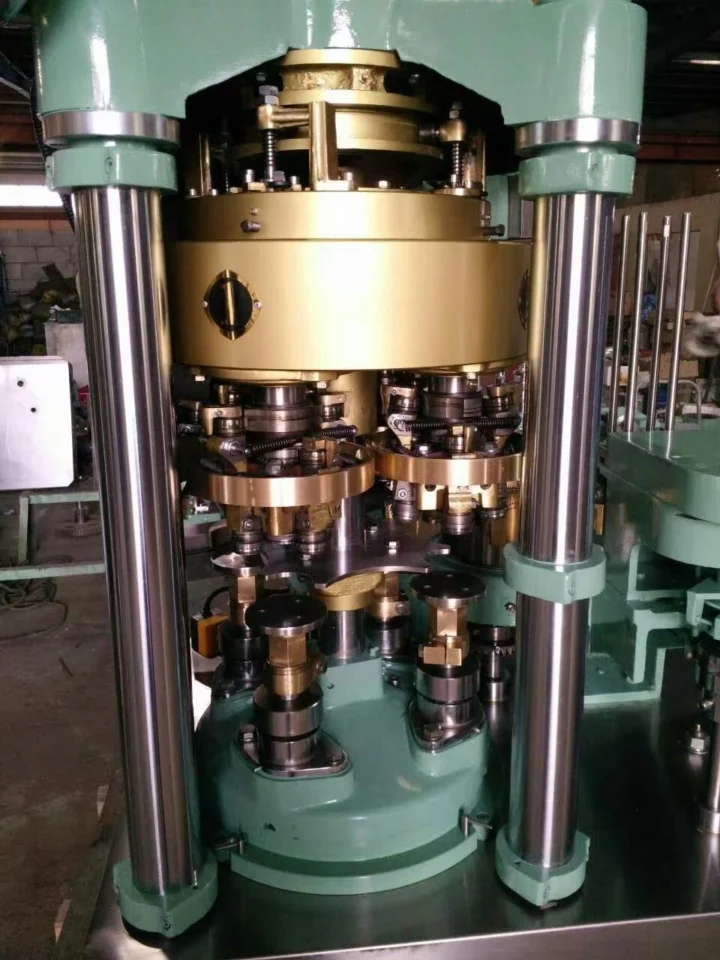

FBN4 double-seaming mechanism close-up

Description

Stationary-Can Automatic Seaming Machine

FBN4 / FBN6 · 3,000–18,000 CPH

The FBN4 and FBN6 are automatic stationary-can seaming machines for round metal cans. During double seaming, the can body remains stationary while the rotating seaming system completes the closure. The range includes four- and six-head configurations, with published outputs up to 160 cans/min for FBN4 and 50–300 cans/min for FBN6.

This machine performs can closing/seaming only; filling equipment can be configured separately. Final model selection requires approval of the can-body drawing, end drawing, filled product, target output, utilities and line-integration conditions.

Check Can & End FitWhatsApp about this machine

FBN4 Stationary-Can Seaming Demonstration

FBN4 stationary-can seaming demonstration.

Standard Features

Stationary-Can Double Seaming

The can body remains stationary while the rotating seaming system completes the double-seaming cycle.

FBN4 and FBN6 Configurations

Four-head and six-head configurations cover different output and line-integration requirements.

Four-Roller Seaming System

A four-roller double-seaming structure supports model-specific seam adjustment and control.

Automatic Product Flow

Automatic can infeed, lifting, seaming and discharge are integrated into one continuous sequence.

PLC and HMI Control

Production speed, operating status and key machine functions are managed through the control system.

Drawing-Based Tooling Confirmation

Can and end tooling is confirmed against approved customer drawings before production.

Product Specifications

Swipe to view all models

Technical specifications for Weichi FBN4 and FBN6 stationary-can automatic seaming machines.FBN4FBN6
Seaming heads46
Can rotation during seamingStationaryStationary
Seaming systemFour-roller double seamFour-roller double seam
Production capacityUp to 160 cans/min50–300 cans/min
Applicable can inside diameter52–108 mm52–99 mm
Applicable can height39–220 mm31–160 mm
Motor power3 kW7.5 kW
Compressed airNot specified0.4 MPa
Can infeed height800 mmNot specified
Overall dimensions (L × W × H)1600 × 2400 × 2000 mm2200 × 2000 × 2200 mm
Weight2500 kg2500 kg

Selection & Integration Notes

Required Technical Information

Submit the can-body drawing, end drawing, filled-product information and required output for technical review.

Separate Filling Equipment

Filling equipment is selected separately according to the product, filling method and line layout.

Capacity Confirmation

Published capacity is a model range; sustained output is confirmed under the approved can, end, product and acceptance conditions.
